Designed clean. Built for excellence.

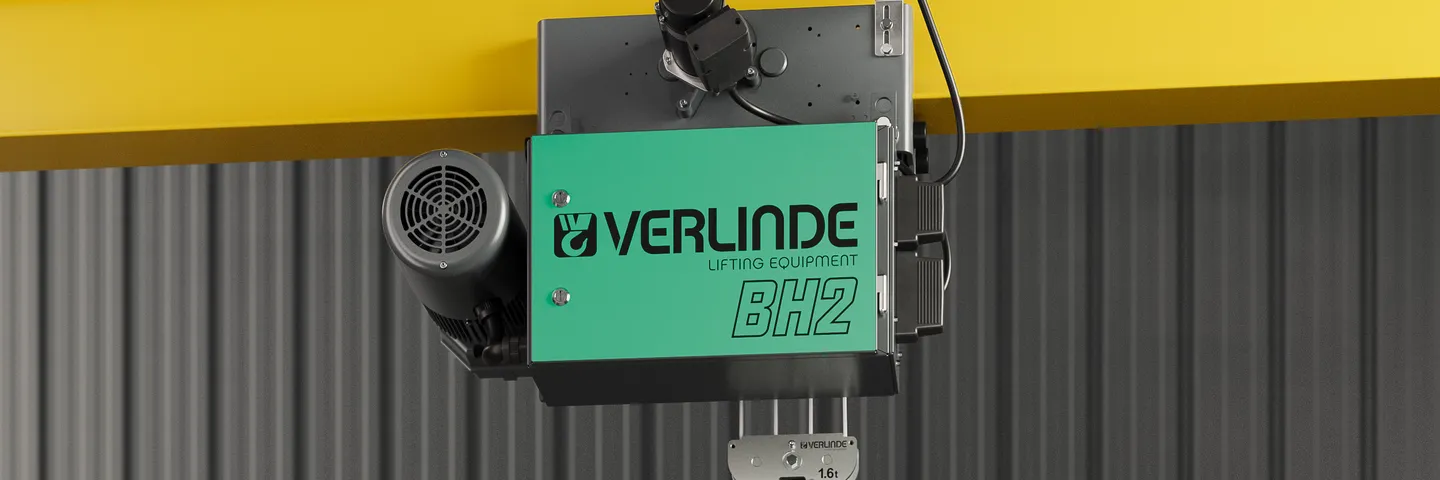

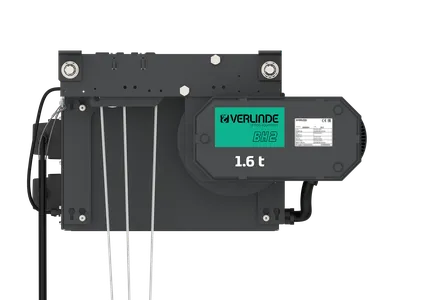

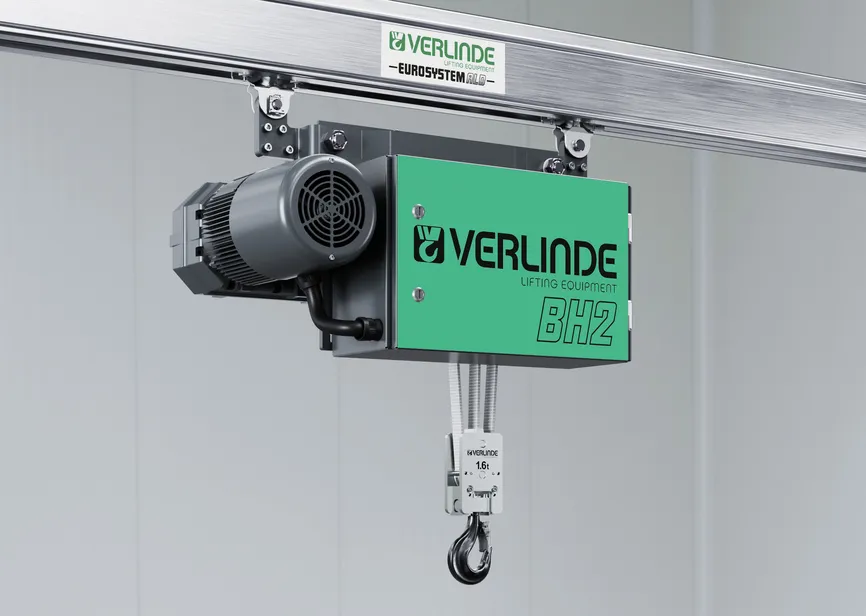

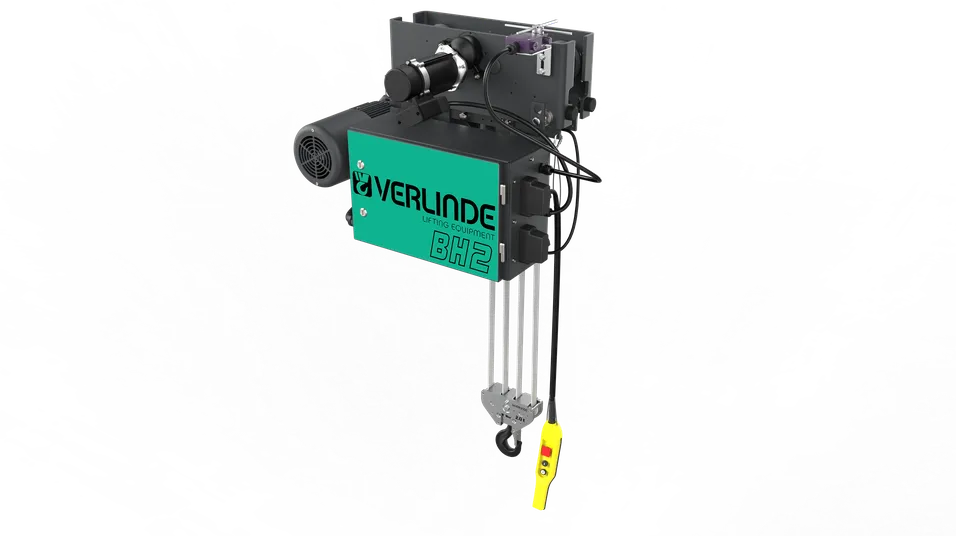

Industrial lifting gets a new benchmark with the BH series. Built around innovative white Dyneema® belt technology and capable of handling loads up to 6300 kg, it suits food processing and pharmaceutical facilities, plus any setting demanding strict technical cleanliness, and more besides. Smooth, contamination-free performance is what BH hoists deliver, even in the toughest industrial settings.
A new generation of clean-lift technology.

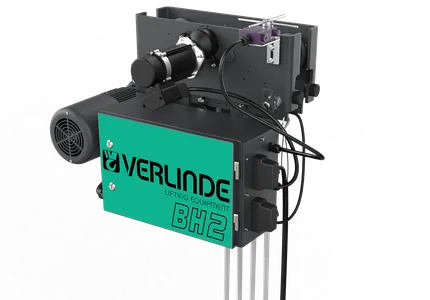

At the core of the BH range sits the white Dyneema® belt — one of the strongest, most advanced fibers available anywhere. Paired with stainless-steel components, sealed bearings, and plastic or stainless-steel pulleys, it forms a lifting solution built for outstanding cleanliness and easy upkeep. Unlike conventional chain or wire rope hoists, the BH range needs no lubrication and cuts contamination risk by eliminating metal particle generation.
Load capacity
125kgto6300kg
Standard lifting capacities
4.5mto9m
Areas handling abrasive dust, powder, flour or big bags
“Technical Cleanliness” per ISO 16232
“Cleanroom” per ISO14644-1 and -14 for BH2 stainless-steel hoist versions.
Food industry
Pharmaceuticals
Chemicals
Electronics industry
Water treatment industry
Since the BH product range includes stainless-steel hooks, hook blocks, wheels, cubicles and more, always fitted with sealed bearings and plastic or stainless-steel pulleys, cleaning is easy and the environment stays less contaminated compared with chain or rope hoists. That's because the pulleys and belts generate no metal particles that could fall off and contact the products.
With the Dyneema® belt, lubrication isn't needed. Combined with the design of BH hoists, this results in equipment that copes better with high humidity.
The Dyneema® belt has kept its original white colour so dirt is easier to spot on the belt in sensitive working environments.
BH2 comes with an electronic overload device using MT3.
A 4-step Stromag geared limit switch comes fitted as standard on both BH2 and BH5.
Function for:
Phase mismatch control (2-speed); slow-down on lowering (inverter hoisting)
Lower position STOP
Upper position SLOW-DOWN
Upper position STOP
Dyneema® fibers currently rank among the strongest available worldwide, with the highest resistance to any chemicals.
There's no polygonal effect on the load: thanks to their belt/drum combination, BH hoists avoid this phenomenon entirely and deliver linear speed instead, making them the best choice for flexibility and positioning on light-duty cranes and jibs.
BH2 stainless-steel hoist versions carry Cleanroom class 7 certification under ISO14644-1 and -14, awarded by the Fraunhofer institute.
BH2: 5 to 20m/min double speed
BH2 : 0.5 to 20m/min inverter
BH5: 3.8 to 5.9m/min double speed

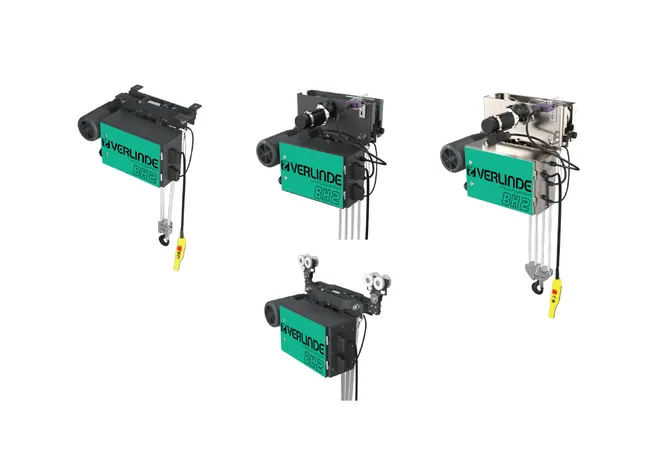

Versions: fixed suspended, normal headroom
Trolley: motorised
BH2: 5 to 20m/min double speed
BH2 : 0.5 to 20m/min inverter
BH5: 3.8 to 5.9m/min double speed
Versions: fixed suspended, normal headroom
Trolley: motorised
Lifting speeds spanning 0.8 m/min up to 16 m/min
Pick from several versions here: low headroom, normal headroom, double girder, fixed, suspended, or machinery style
Trolley: motorized
Lifting speeds spanning 0.4 m/min up to 20 m/min
Pick from several versions here: fixed, normal headroom, double girder, swivel trolley, or machinery style.
Trolley: motorized
Lifting speeds spanning 4 m/min up to 16 m/min
Pick from several versions here: bracket, low headroom, normal headroom, or swivel trolley style
Trolleys: motorized / push
The BH range hits high performance standards and serves many demanding installations, thanks to its Dyneema® belt, purpose-built parts and product configurations.

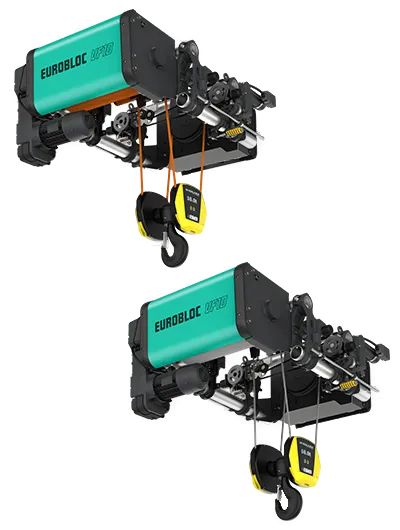

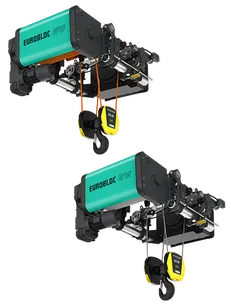

Backed by numerous patents, the new Eurobloc VF range redefines the standards of electric wire rope hoists and fits naturally into today's connected world. With streamlined operation and maintenance, plus a customisable, sustainable product offering, Eurobloc VF also strengthens the safety of users and installations. Its Dyneema® fiber synthetic cable marks a genuine innovation, extending hoist use into demanding environments. The range is currently offered in low headroom, normal headroom, fixed, double-girder, swivel trolley and mechanism versions.

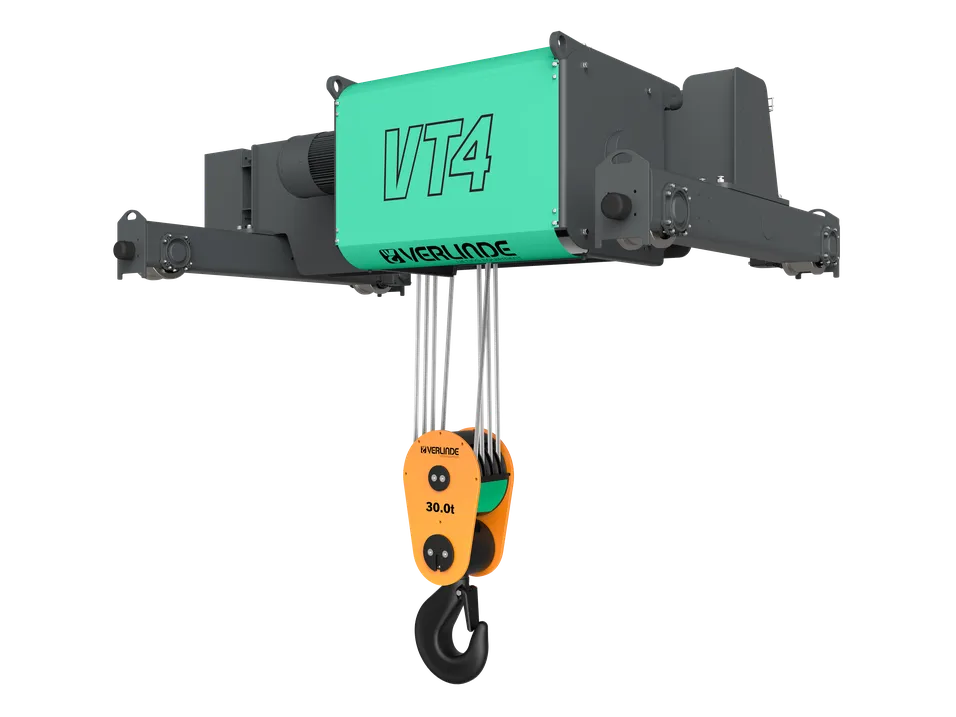

Eurobloc VT is a wire rope hoist built for high performance and productivity. Among its standout features are a compact design, superior lifting guidance via near-vertical lifting, improved positioning accuracy through variable travel speed control, and advanced monitoring functions (MT4) that track operating life and load cycles.

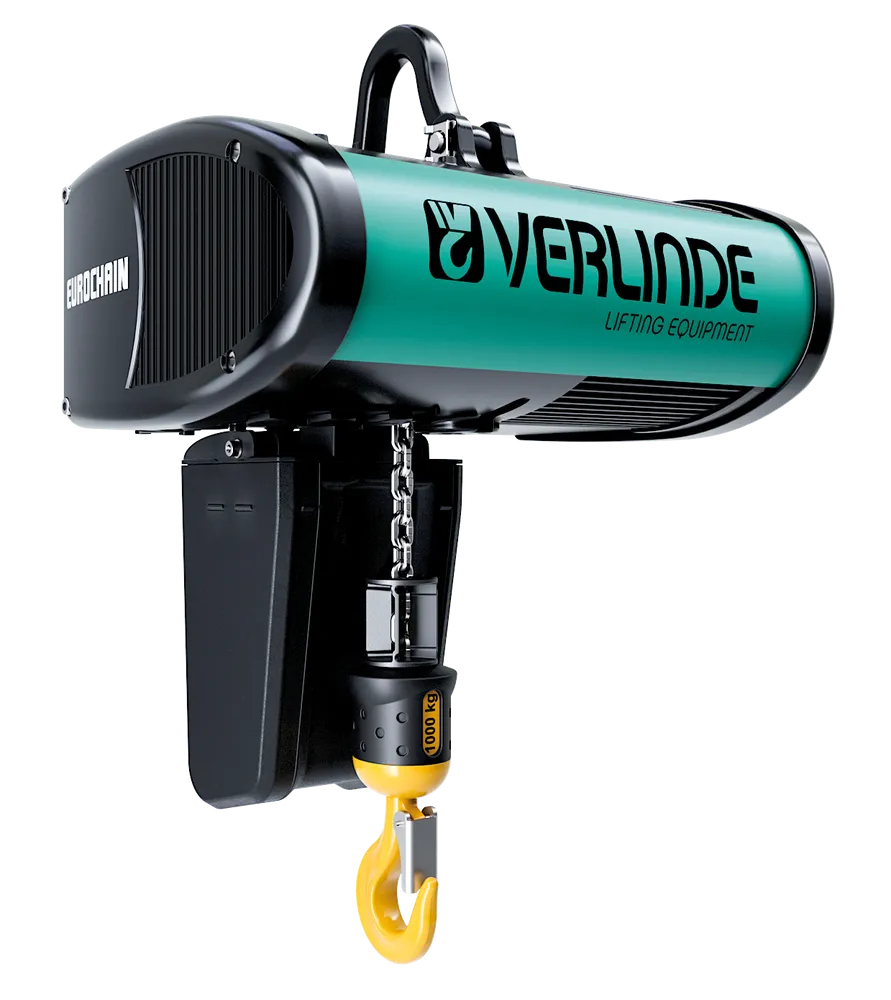

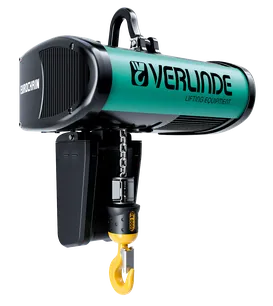

Thanks to its compact design and three key configurations — a fixed hoist suspended by lug, a hoist on a push-travel monorail trolley, and a hoist on an electric-travel monorail trolley — Eurochain VX range fits easily into a wide range of production settings. Its many optimized and reinforced components also significantly boost the durability of installations.
