Lifting that adapts to demanding environments.
Backed by numerous patents, the new Eurobloc VF wire rope hoist — offered with steel or synthetic cable — is a next-generation lifting solution built to perform under demanding industrial conditions. Reliability, precision and advanced engineering come together to keep load handling smooth and controlled across a wide span of capacities and operating conditions. Eurobloc VF is built for efficiency and system integration, making it a strong fit for production lines, workshops and complex material handling settings where performance, adaptability and operational continuity matter most.
Built for simpler maintenance and stronger safety.
Servicing gets simpler and long-term reliability improves by design with Eurobloc VF. The motor/gearbox coupling is symmetrical, so it fits either way round and can be checked without being taken apart, and the lifting and travel motor gear units sit where they're easy to reach. Synthetic rope means no lubrication at all, cutting maintenance further still. On the safety side, an ergonomic hook block adds finger protection, an optional blue safety light marks out the hoist's working area, and Verlinde's ExpertCare and ExpertMonitoring apps let you monitor operating parameters and maintenance needs remotely.
Load capacity
1000kgto20000kg
Standard lifting capacities
6mto53m
Aeronautics
Automotive
Food industry
Port industry
Mining
Chemicals
Power plants
Waste recovery
Fits smoothly into new or existing crane and hoist configurations.
Meeting a wide variety of application requirements calls for a flexible, adaptable architecture.
The motor/gear box coupling is symmetrical, so it can be fitted either way round, and inspected without being taken apart.
Positioned for easy access, the steering and lifting geared motor groups are simple to reach.
With synthetic rope, lubrication isn't needed.
Electrics are easy to reach, making maintenance simpler.
Synthetic rope brings a modern solution: less wear on drum and pulleys compared with steel, a cleaner product, lighter weight, and easier replacement.
Wheel load is distributed more evenly.
A threaded rod makes travelling trolley adjustment simple and straightforward.
Precise load control comes from the electronic limiter (MT3 or MT4).
Extension Speed Range (ESR variator) cuts cycle times down.
Ergonomic hook block with finger protection.
An optional blue safety light marks the hoist's working area.
Verlinde's ExpertCare and ExpertMonitoring apps let you remotely monitor parameters and view maintenance needs.
Lifting speeds spanning 0.8 m/min up to 16 m/min

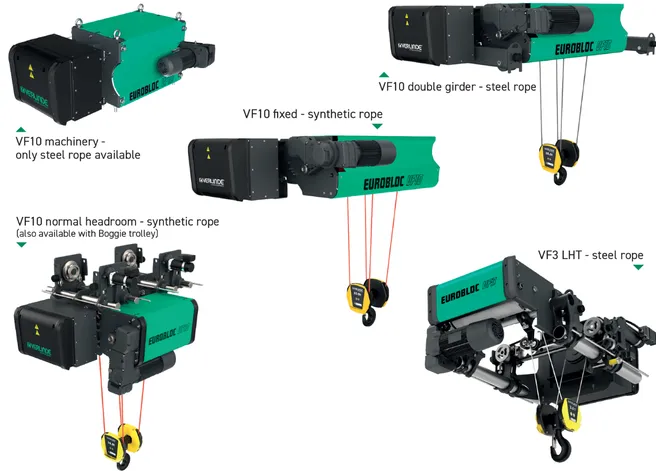

Pick from several versions here: low headroom, normal headroom, double girder, fixed, suspended, or machinery style
Trolley: motorized
Lifting speeds spanning 0.8 m/min up to 16 m/min
Pick from several versions here: low headroom, normal headroom, double girder, fixed, suspended, or machinery style
Trolley: motorized
Lifting speeds spanning 4 m/min up to 16 m/min
Pick from several versions here: bracket, low headroom, normal headroom, or swivel trolley style
Trolleys: motorized / push
BH2: 5 to 20m/min double speed
BH2 : 0.5 to 20m/min inverter
BH5: 3.8 to 5.9m/min double speed
Versions: fixed suspended, normal headroom
Trolley: motorised
Lifting speeds spanning 0.4 m/min up to 20 m/min
Pick from several versions here: fixed, normal headroom, double girder, swivel trolley, or machinery style.
Trolley: motorized

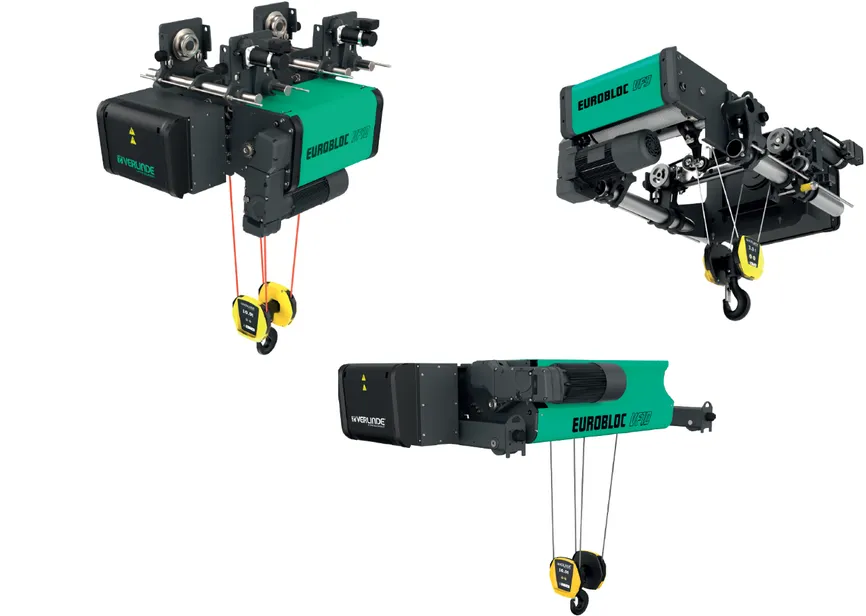

Backed by numerous patents, the new Eurobloc VF range redefines the standards of electric wire rope hoists and fits naturally into today's connected world. With streamlined operation and maintenance, plus a customisable, sustainable product offering, Eurobloc VF also strengthens the safety of users and installations. Its Dyneema® fiber synthetic cable marks a genuine innovation, extending hoist use into demanding environments. The range is currently offered in low headroom, normal headroom, fixed, double-girder, swivel trolley and mechanism versions.
Thanks to its compact design and three key configurations — a fixed hoist suspended by lug, a hoist on a push-travel monorail trolley, and a hoist on an electric-travel monorail trolley — Eurochain VX range fits easily into a wide range of production settings. Its many optimized and reinforced components also significantly boost the durability of installations.
The BH range hits high performance standards and serves many demanding installations, thanks to its Dyneema® belt, purpose-built parts and product configurations.
Eurobloc VT is a wire rope hoist built for high performance and productivity. Among its standout features are a compact design, superior lifting guidance via near-vertical lifting, improved positioning accuracy through variable travel speed control, and advanced monitoring functions (MT4) that track operating life and load cycles.
Lifting speeds spanning 0.8 m/min up to 16 m/min
Pick from several versions here: low headroom, normal headroom, double girder, fixed, suspended, or machinery style
Trolley: motorized
Lifting speeds spanning 4 m/min up to 16 m/min
Pick from several versions here: bracket, low headroom, normal headroom, or swivel trolley style
Trolleys: motorized / push
BH2: 5 to 20m/min double speed
BH2 : 0.5 to 20m/min inverter
BH5: 3.8 to 5.9m/min double speed
Versions: fixed suspended, normal headroom
Trolley: motorised
Lifting speeds spanning 0.4 m/min up to 20 m/min
Pick from several versions here: fixed, normal headroom, double girder, swivel trolley, or machinery style.
Trolley: motorized
