Its approach dimensions rank among the most compact on the market.

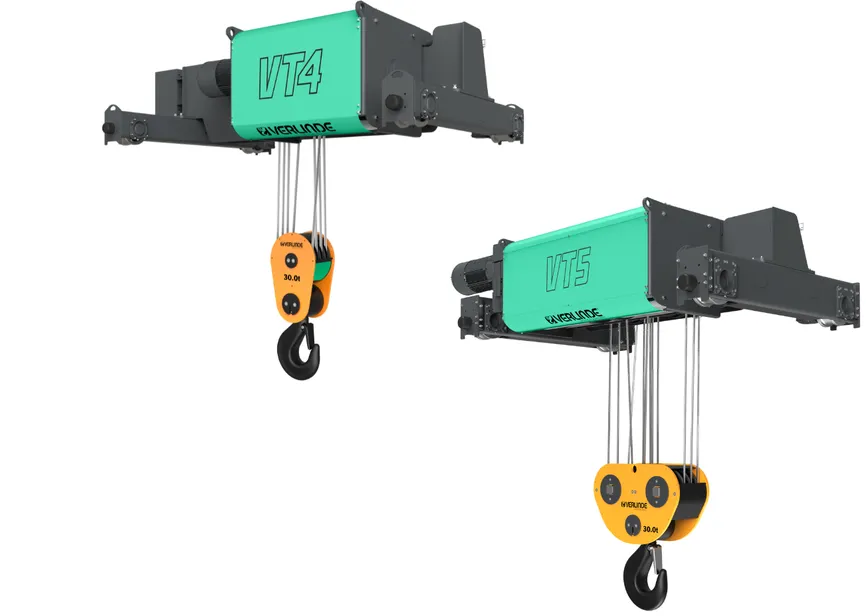

In its standard version, Eurobloc VT delivers class-leading compactness with among the smallest hook approach dimensions around, making better use of building height and work areas without sacrificing productivity. Fixed, normal, double girder, swivel trolley and machinery versions are all offered across the Eurobloc VT range, suiting a wide array of installations.
Built to set a new performance benchmark.
Grounded in Verlinde's pioneering expertise, Eurobloc VT, backed by 13 patents, particularly stands out for its near-vertical lifting (minimal lateral hook block displacement) and standard-feature adjustable travel speed. Together, these traits sharpen precision, improve operator comfort, and give greater control over movement.
Load capacity
6300kgto80000kg
Standard lifting capacities
5mto98.5m
Aeronautics
Automotive
Shipyards
Rail industry
Port industry
Paper industry
Pharmaceuticals
Metallurgy
Among the smallest on the market, its hook approach dimensions set it apart.
Near-vertical lifting keeps lateral movement of the hook block to a minimum during lifting.
Advanced monitoring comes via the MT4 system, which records load cycles and calculates DWP (Design Working Period).
The hoisting brake is set for the hoist's entire working life under normal use, and comes with dust protection.
Extension Speed Range (ESR variator) cuts cycle times down.
Loads can be positioned precisely thanks to variable travelling speed.
Electronic control keeps track of the hoist's solicitation status.
Compliant with the Machinery Directive, the overload limiter pairs with low-voltage control and a safety-latch-equipped swivel hook/hook block.
Optional drum brake.
A side-mounted electrical enclosure with quick-release closure is easy to reach, and components such as the spring-free rope guide and protected drum are designed for simpler servicing.
A modular build using universal parts.
Modular assembly makes managing spare-parts replacement easier.
Lifting speeds spanning 0.4 m/min up to 20 m/min
Pick from several versions here: fixed, normal headroom, double girder, swivel trolley, or machinery style.
Trolley: motorized
Lifting speeds spanning 0.4 m/min up to 20 m/min
Pick from several versions here: fixed, normal headroom, double girder, swivel trolley, or machinery style.
Trolley: motorized
Lifting speeds spanning 0.8 m/min up to 16 m/min
Pick from several versions here: low headroom, normal headroom, double girder, fixed, suspended, or machinery style
Trolley: motorized
It lifts at 0.7 to 19 m/min
Available versions: fixed, double girder and machinery.
Trolley: motorized
Eurobloc VT is a wire rope hoist built for high performance and productivity. Among its standout features are a compact design, superior lifting guidance via near-vertical lifting, improved positioning accuracy through variable travel speed control, and advanced monitoring functions (MT4) that track operating life and load cycles.
Backed by numerous patents, the new Eurobloc VF range redefines the standards of electric wire rope hoists and fits naturally into today's connected world. With streamlined operation and maintenance, plus a customisable, sustainable product offering, Eurobloc VF also strengthens the safety of users and installations. Its Dyneema® fiber synthetic cable marks a genuine innovation, extending hoist use into demanding environments. The range is currently offered in low headroom, normal headroom, fixed, double-girder, swivel trolley and mechanism versions.
With Eurobloc VT9-10-11-12, the Eurobloc VT range gains large yet compact electric open winches offering greater lifting capacity (10 to 250 tonnes), along with smooth handling, high uptime and strong protection for both people and equipment.
Lifting speeds spanning 0.4 m/min up to 20 m/min
Pick from several versions here: fixed, normal headroom, double girder, swivel trolley, or machinery style.
Trolley: motorized
Lifting speeds spanning 0.8 m/min up to 16 m/min
Pick from several versions here: low headroom, normal headroom, double girder, fixed, suspended, or machinery style
Trolley: motorized
It lifts at 0.7 to 19 m/min
Available versions: fixed, double girder and machinery.
Trolley: motorized
