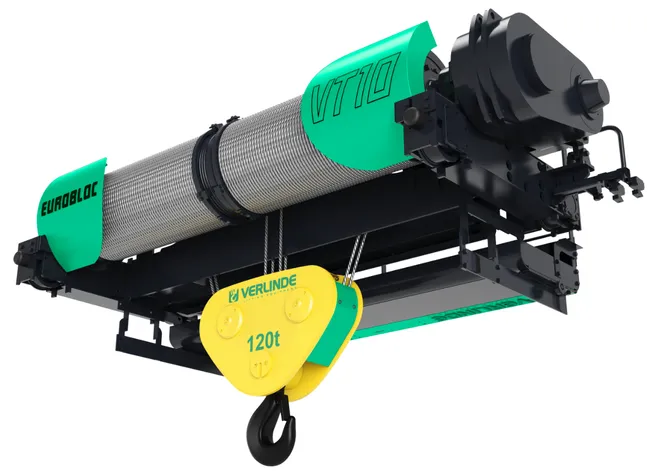

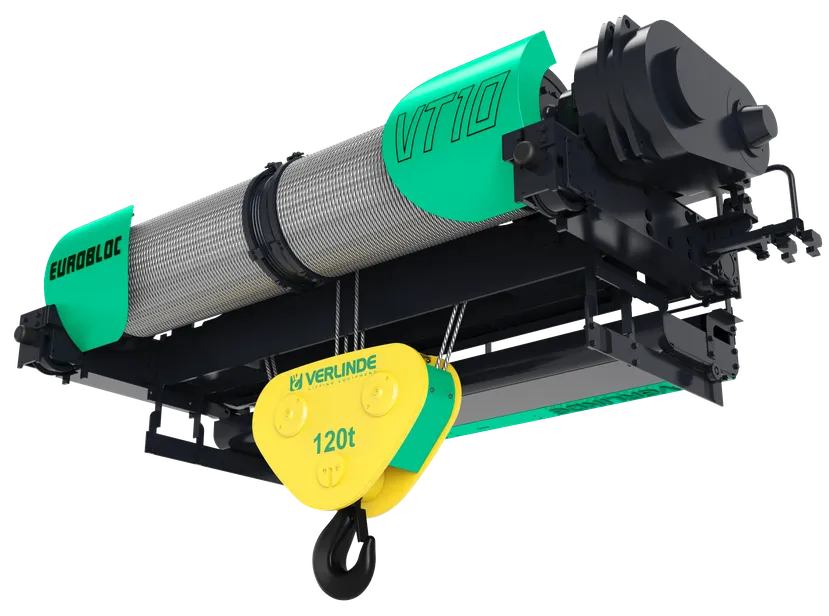

Name: Eurobloc VT9-10-11-12
Brand: Verlinde

Electric open winch rated for loads between 10 000 and 250 000 kg

Overview

High lifting performance in a compact open winch.

With Eurobloc VT9-10-11-12, the Eurobloc VT range adds large yet compact electric open winches that beat typical market solutions on both space efficiency and lifting capability. Rapid, variable lifting speeds for smooth, precise control come from closed-loop inverter technology, while a centred lifting concept boosts stability and positioning. High load capacities can cut the need for twin hoists, and optimized trolley wheel positioning improves load distribution across the supporting structure.

Innovation

Advanced safety and condition monitoring meet precision lifting.

High-performance mechanics, smart drive control and advanced safety monitoring combine in the Eurobloc VT open winch range to deliver smoother handling, higher uptime, and stronger protection for both people and equipment. Safety and reliability are further reinforced by high-safety disk brakes, intelligent brake monitoring (slip/blocking detection), multi-level lifting and travel limit switches (including double end-of-travel protection), and overload and thermal protection. Built for harsh environments and a long service life, it also comes with ready-to-use connection units that simplify commissioning and maintenance.

Technical details

Load capacity

10000kgto250000kg

Standard lifting capacities

10mto129m

The following industries depend on Eurobloc VT9-10-11-12 winches:

Aeronautics
Automotive
Shipyards
Port industry
Metallurgy
Power plants
Waste recovery
Electronics industry

Key benefits

Compare with similar products

Eurobloc VT9-10-11-12

With Eurobloc VT9-10-11-12, the Eurobloc VT range gains large yet compact electric open winches offering greater lifting capacity (10 to 250 tonnes), along with smooth handling, high uptime and strong protection for both people and equipment.

Load capacity: From 10000 to 250000kg
Standard lifting capacities: From 10 to 129m
Lifting type: Variable speed
Key features and performance: It lifts at 0.7 to 19 m/min
Available versions: fixed, double girder and machinery.
Trolley: motorized
Key benefits: A compact yet high-capacity open winch format. Large load capacities mean twin hoists aren't needed. A high-performance hoisting motor with closed-loop variable speed and encoder feedback delivers precise, stable lifting, smooth starts and stops, and accurate positioning. Control improves and mechanical stress drops thanks to variable speed travel. An inverter drive intelligently monitors the brake, detecting load slip or blocking.

CHOOSE A MODEL

Eurobloc VT9-10-11-12

With Eurobloc VT9-10-11-12, the Eurobloc VT range gains large yet compact electric open winches offering greater lifting capacity (10 to 250 tonnes), along with smooth handling, high uptime and strong protection for both people and equipment.

Load capacity: From 10000 to 250000kg
Standard lifting capacities: From 10 to 129m
Lifting type: Variable speed
Key features and performance: It lifts at 0.7 to 19 m/min
Available versions: fixed, double girder and machinery.
Trolley: motorized
Key benefits: A compact yet high-capacity open winch format. Large load capacities mean twin hoists aren't needed. A high-performance hoisting motor with closed-loop variable speed and encoder feedback delivers precise, stable lifting, smooth starts and stops, and accurate positioning. Control improves and mechanical stress drops thanks to variable speed travel. An inverter drive intelligently monitors the brake, detecting load slip or blocking.

Eurobloc VT9-10-11-12

With Eurobloc VT9-10-11-12, the Eurobloc VT range gains large yet compact electric open winches offering greater lifting capacity (10 to 250 tonnes), along with smooth handling, high uptime and strong protection for both people and equipment.

Load capacity: From 10000 to 250000kg

Standard lifting capacities: From 10 to 129m

Lifting type: Variable speed

Key features and performance

It lifts at 0.7 to 19 m/min
Available versions: fixed, double girder and machinery.
Trolley: motorized

Key benefits: A compact yet high-capacity open winch format. Large load capacities mean twin hoists aren't needed. A high-performance hoisting motor with closed-loop variable speed and encoder feedback delivers precise, stable lifting, smooth starts and stops, and accurate positioning. Control improves and mechanical stress drops thanks to variable speed travel. An inverter drive intelligently monitors the brake, detecting load slip or blocking.
