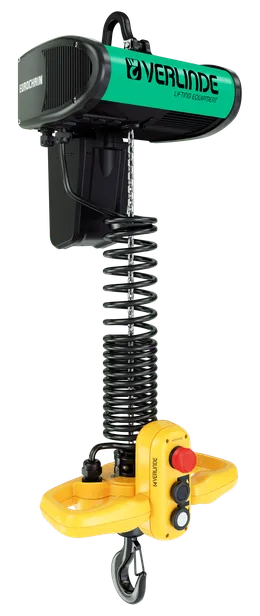

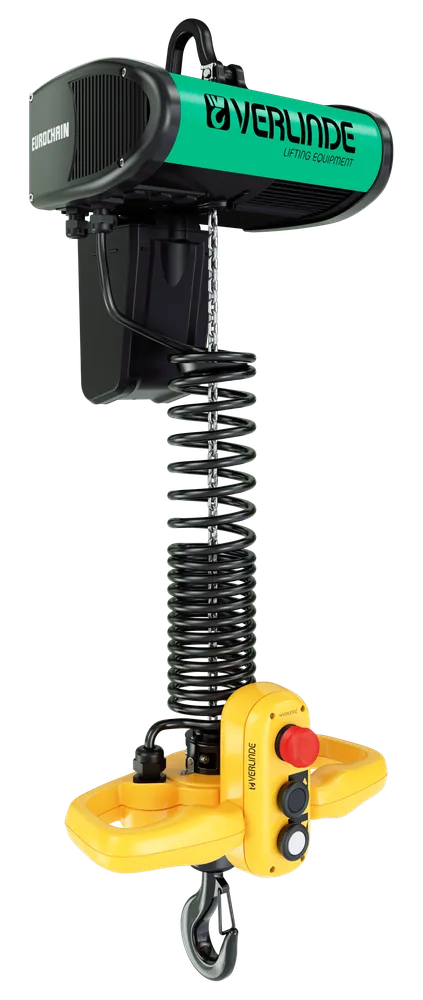

Eurochain VX Digichain

Other lifting or gripping accessories can be fitted thanks to the removable lifting hook.

A wide-opening suspension lug makes installation easier and optimizes lifting height, while remaining compatible with existing trolleys.

Improved resistance to wear in dusty, harsh operating conditions comes from the DAT hoist chain.

No adjustment and barely any maintenance are needed, thanks to the optimized hoist brake.

Main components are easy to reach for maintenance.

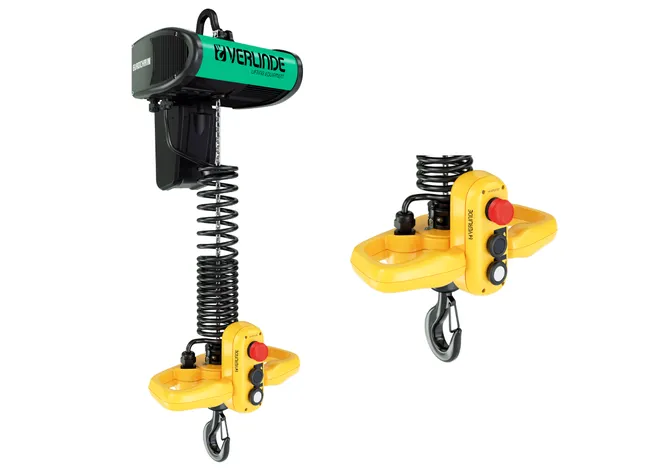

Faster, more efficient operation comes from having hook position control and lifting controls built into the same gripper.

Smaller dimensions allow for improved hook approach.

In-house development tailored specifically for hoists gives the motor increased robustness.

An optimized gearbox boosts hoist efficiency.

Snagging risk is eliminated entirely by the coiled control cable.

Safety is enhanced and user protection maximized through upper and lower electrical limit switches together with 48V low-voltage control.

Both the upper and lower lifting hook positions are covered by a robust safety electrical limit switch.

Preventive overheating sensors on the hoisting motor bring improved safety.

Should an overload occur, greater safety for both user and building structure comes from a more precisely adjusted torque limiter.
