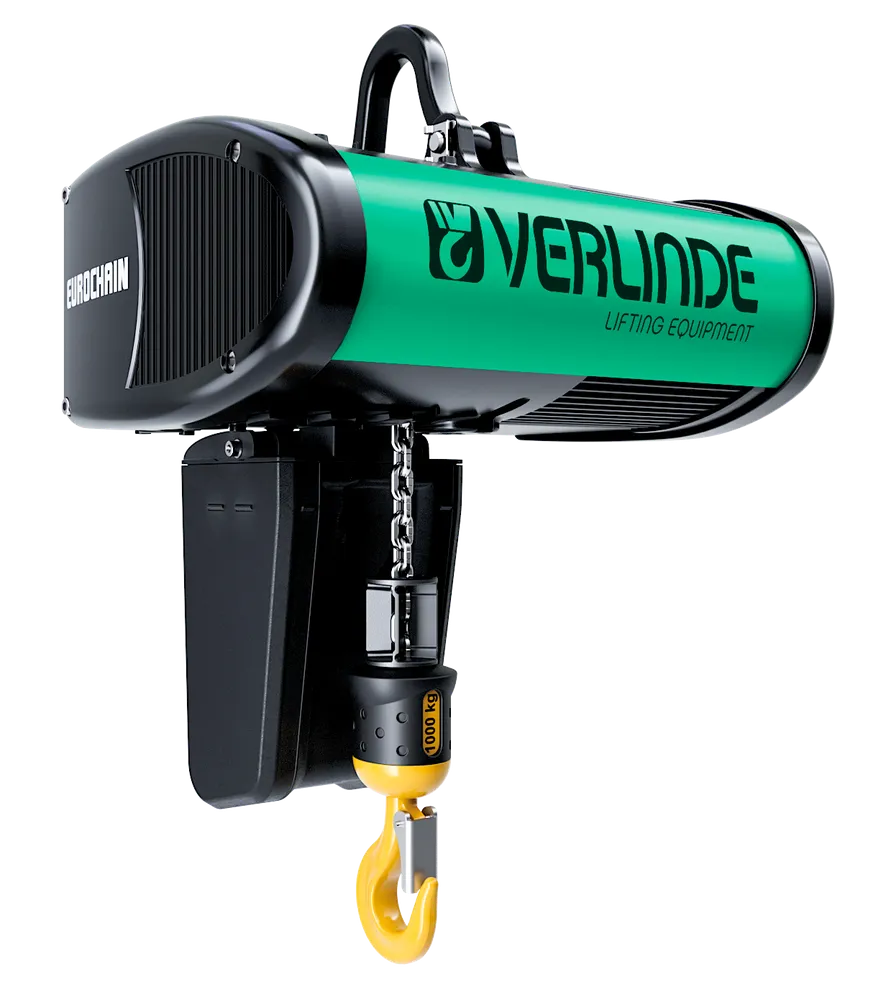

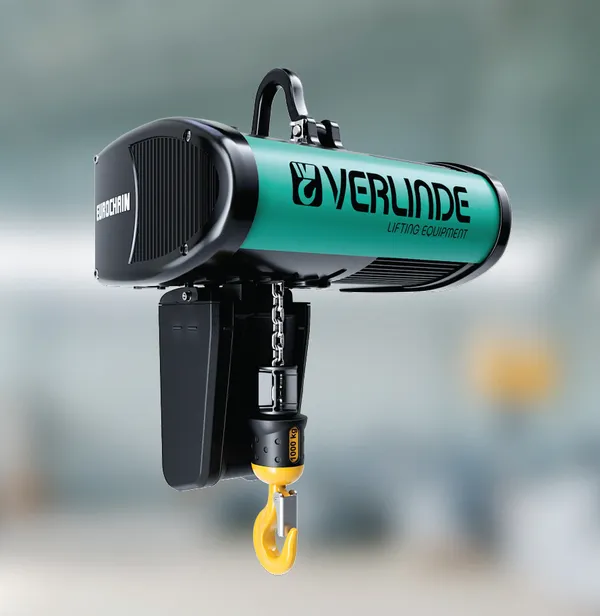

Name: Eurochain VX
Brand: Verlinde

Electric chain hoist rated for loads between 63 and 2500 kg

Overview

Compact in its design, ready for any application.

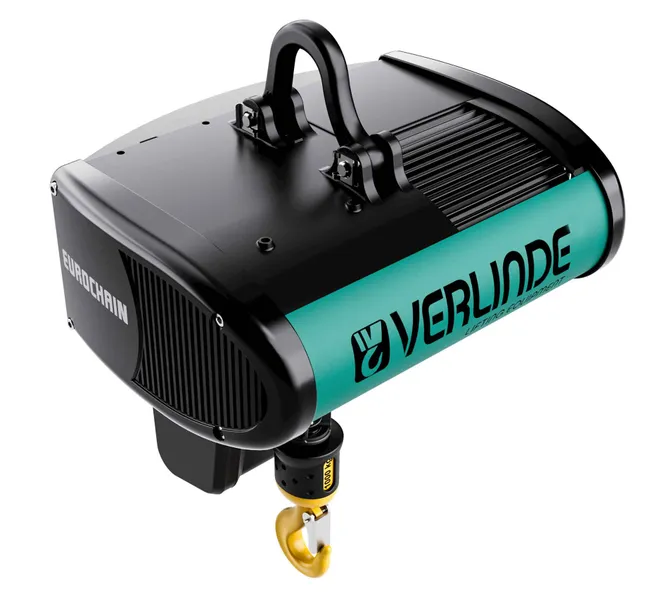

A compact product design and three key configurations define Eurochain VX: a fixed hoist suspended by a suspension lug, a hoist on a push-travel monorail trolley, and a hoist on an electrically driven monorail trolley. Built to integrate easily across a wide variety of production environments, the range also comes in VX-S, Digichain, Stainless Steel, Vario and Exproof versions, forming a complete solution for a broad range of lifting applications. A wide-opening suspension lug simplifies installation and optimizes lifting height, while reduced dimensions allow for improved hook approach. Staying compatible with existing trolleys, Eurochain VX integrates easily into both new and existing installations.

Innovation

Built for greater durability, efficiency and safety

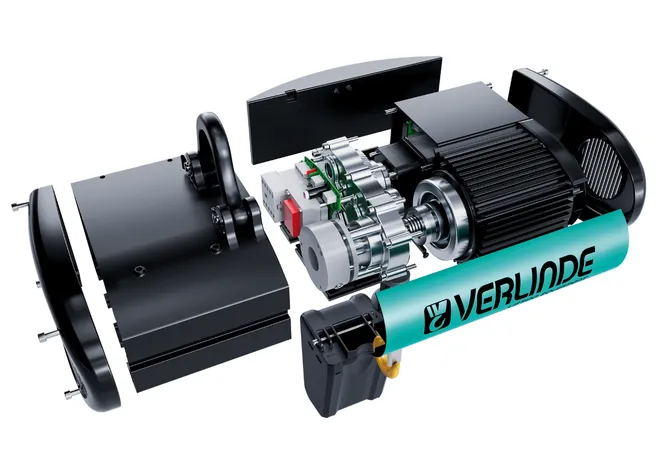

Installation durability significantly improves thanks to Eurochain VX's numerous optimized and reinforced components. The optimized lifting brake needs no adjustment and only minimal maintenance, while the DAT lifting chain resists wear better in dusty environments and harsh operating conditions. In-house development designed specifically for hoisting applications gives the motor greater robustness. An optimized gearbox boosts hoist efficiency, and a robust electrical safety limit switch governs the upper and lower lifting hook positions. Safety improves through preventive overheating sensors on the lifting motor, and a more precise torque limiter adjustment gives greater protection to both the operator and the building structure in the event of an overload.

Technical details

Load capacity

63kgto2500kg

Standard lifting capacities

3mto35m

The following industries rely on Eurochain VX hoists:

Aeronautics
Automotive
Shipyards
Rail industry
Mining
Chemicals
Mechanical industry
Electronics industry

Key benefits

Compare with similar products

Eurochain VX

Thanks to its compact design and three key configurations — a fixed hoist suspended by lug, a hoist on a push-travel monorail trolley, and a hoist on an electric-travel monorail trolley — Eurochain VX range fits easily into a wide range of production settings. Its many optimized and reinforced components also significantly boost the durability of installations.

Load capacity: From 63 to 2500kg
Standard lifting capacities: From 3 to 35m
Lifting type: Double speed
Key features and performance: Lifting speeds spanning 4 m/min up to 16 m/min
Pick from several versions here: bracket, low headroom, normal headroom, or swivel trolley style
Trolleys: motorized / push
Key benefits: A wide-opening suspension lug simplifies installation and optimizes lifting height through a reduced C dimension, while remaining compatible with existing trolleys. DAT hoist chain offers improved wear resistance in dusty environments and under harsh operating conditions. A robust safety electrical limit switch covers the upper and lower lifting hook positions. A more precise torque limiter adjustment delivers greater safety for both the user and the building structure in the event of overload.

CHOOSE A MODEL

Eurochain VX

Thanks to its compact design and three key configurations — a fixed hoist suspended by lug, a hoist on a push-travel monorail trolley, and a hoist on an electric-travel monorail trolley — Eurochain VX range fits easily into a wide range of production settings. Its many optimized and reinforced components also significantly boost the durability of installations.

Load capacity: From 63 to 2500kg
Standard lifting capacities: From 3 to 35m
Lifting type: Double speed
Key features and performance: Lifting speeds spanning 4 m/min up to 16 m/min
Pick from several versions here: bracket, low headroom, normal headroom, or swivel trolley style
Trolleys: motorized / push
Key benefits: A wide-opening suspension lug simplifies installation and optimizes lifting height through a reduced C dimension, while remaining compatible with existing trolleys. DAT hoist chain offers improved wear resistance in dusty environments and under harsh operating conditions. A robust safety electrical limit switch covers the upper and lower lifting hook positions. A more precise torque limiter adjustment delivers greater safety for both the user and the building structure in the event of overload.

Eurochain VX

Thanks to its compact design and three key configurations — a fixed hoist suspended by lug, a hoist on a push-travel monorail trolley, and a hoist on an electric-travel monorail trolley — Eurochain VX range fits easily into a wide range of production settings. Its many optimized and reinforced components also significantly boost the durability of installations.

Load capacity: From 63 to 2500kg

Standard lifting capacities: From 3 to 35m

Lifting type: Double speed

Key features and performance

Lifting speeds spanning 4 m/min up to 16 m/min
Pick from several versions here: bracket, low headroom, normal headroom, or swivel trolley style
Trolleys: motorized / push

Key benefits: A wide-opening suspension lug simplifies installation and optimizes lifting height through a reduced C dimension, while remaining compatible with existing trolleys. DAT hoist chain offers improved wear resistance in dusty environments and under harsh operating conditions. A robust safety electrical limit switch covers the upper and lower lifting hook positions. A more precise torque limiter adjustment delivers greater safety for both the user and the building structure in the event of overload.
