Name: PDW
Brand: Verlinde

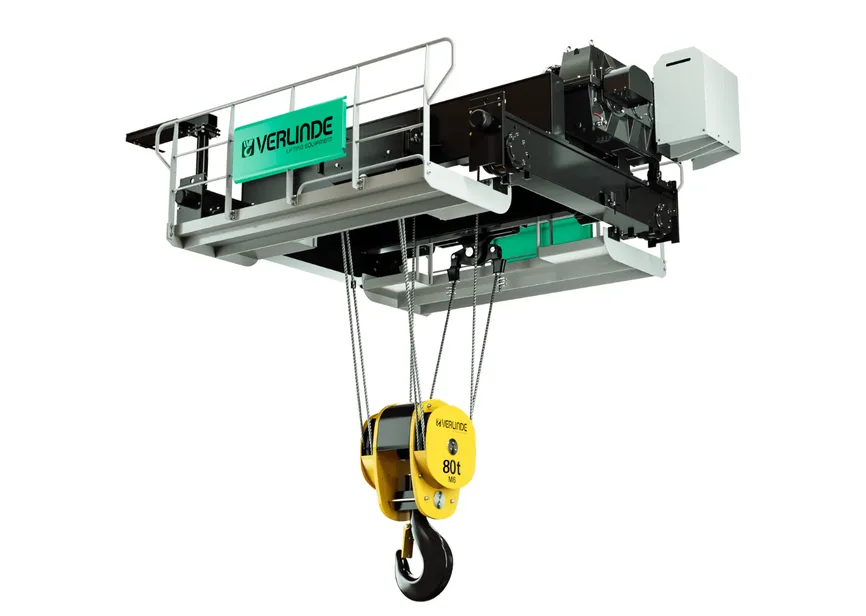

Process duty open winch rated for loads between 6300 and 80 000 kg

Overview

Performance built for process duty.

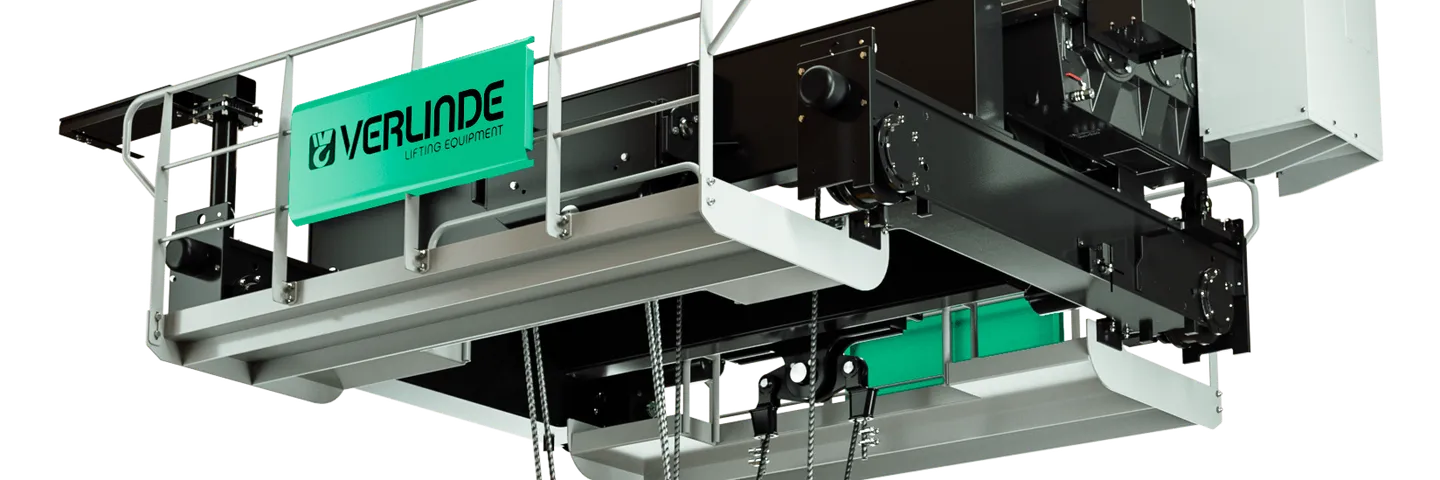

Designed for high-capacity lifting up to 80 tonnes, PDW is a process duty open winch built for applications where lifting performance, control and long-term reliability matter most. True vertical lift, extended speed range (ESR) technology and variable trolley speed control combine to support both safe load handling and efficient cycle times. Its modular open winch design and built-in safety features make PDW a robust lifting solution for process cranes and heavy industrial operations.

Innovation

Innovation engineered for process duty lifting.

Advanced open winch engineering meets process duty lifting in PDW, which combines a modular machinery concept with technical optimizations built for high-capacity, high-frequency operation. Bending forces caused by the load are largely eliminated through its floating hoisting machinery suspension, while an optimized gearbox and rope drum connection reduce misalignment and support long component lifetime. Fast movement without load, plus controlled, high-torque travel under load, help PDW improve productivity, safety and reliability across process crane applications.

Technical details

Load capacity

6300kgto80000kg

Standard lifting capacities

6.4mto25.2m

The following industries rely on PDW winches:

Aeronautics
Automotive
Shipyards
Port industry
Metallurgy
Mining
Quarries
Pharmaceuticals

Key benefits

Compare with similar products

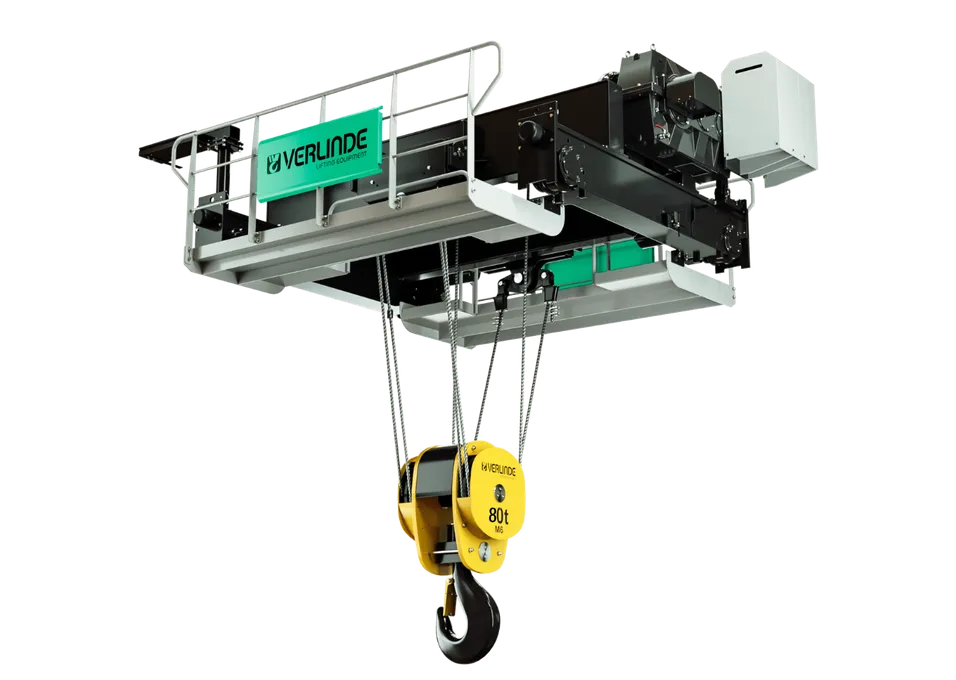

PDW

PDW extends the Verlinde open winch family as a process duty open winch built to meet higher duty group requirements from M6 upward. A wide capacity range (6300 to 80000kg), modular open winch design, built-in safety features, and standard extended speed range (ESR) technology together support safe load handling, efficient cycle times, and lasting performance under intensive lifting operations.

Load capacity: From 6300 to 80000kg
Standard lifting capacities: From 6.4 to 25.2m
Lifting type: Variable speed
Key features and performance: It lifts at 10 to 20 m/min
Available versions: fixed, double girder and machinery.
Trolley: motorized
Key benefits: Safety, productivity and long-term reliability come together in PDW, a heavy-duty process duty open winch solution. Its high-torque hoisting brake, overload and overspeed protection, and safe working period monitoring all support safer operation across the equipment's lifecycle. Lifting efficiency improves through extended speed range technology, while inverter-controlled movements give smoother, more precise handling. Optimized rope and drum design, robust component engineering, and easy-to-reach inspection points all help PDW reduce wear and simplify servicing over time.

CHOOSE A MODEL

PDW

PDW extends the Verlinde open winch family as a process duty open winch built to meet higher duty group requirements from M6 upward. A wide capacity range (6300 to 80000kg), modular open winch design, built-in safety features, and standard extended speed range (ESR) technology together support safe load handling, efficient cycle times, and lasting performance under intensive lifting operations.

Load capacity: From 6300 to 80000kg
Standard lifting capacities: From 6.4 to 25.2m
Lifting type: Variable speed
Key features and performance: It lifts at 10 to 20 m/min
Available versions: fixed, double girder and machinery.
Trolley: motorized
Key benefits: Safety, productivity and long-term reliability come together in PDW, a heavy-duty process duty open winch solution. Its high-torque hoisting brake, overload and overspeed protection, and safe working period monitoring all support safer operation across the equipment's lifecycle. Lifting efficiency improves through extended speed range technology, while inverter-controlled movements give smoother, more precise handling. Optimized rope and drum design, robust component engineering, and easy-to-reach inspection points all help PDW reduce wear and simplify servicing over time.

PDW

PDW extends the Verlinde open winch family as a process duty open winch built to meet higher duty group requirements from M6 upward. A wide capacity range (6300 to 80000kg), modular open winch design, built-in safety features, and standard extended speed range (ESR) technology together support safe load handling, efficient cycle times, and lasting performance under intensive lifting operations.

Load capacity: From 6300 to 80000kg

Standard lifting capacities: From 6.4 to 25.2m

Lifting type: Variable speed

Key features and performance

It lifts at 10 to 20 m/min
Available versions: fixed, double girder and machinery.
Trolley: motorized

Key benefits: Safety, productivity and long-term reliability come together in PDW, a heavy-duty process duty open winch solution. Its high-torque hoisting brake, overload and overspeed protection, and safe working period monitoring all support safer operation across the equipment's lifecycle. Lifting efficiency improves through extended speed range technology, while inverter-controlled movements give smoother, more precise handling. Optimized rope and drum design, robust component engineering, and easy-to-reach inspection points all help PDW reduce wear and simplify servicing over time.
