Market-leading compactness. ATEX-compliant lifting.

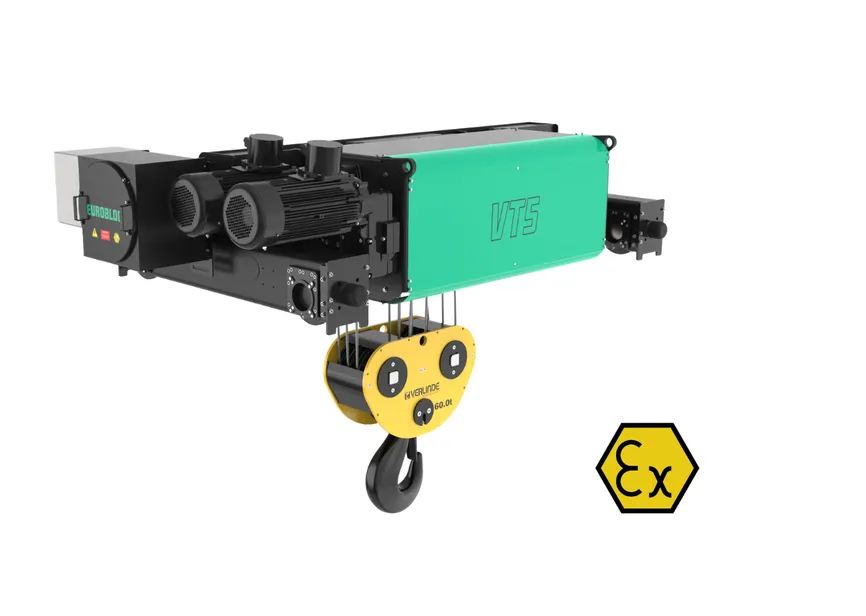

Built for hazardous environments, Eurobloc VT Ex is an Ex-proof hoist meeting ATEX requirements for zones 1 and 2 (gas) and zones 21 and 22 (dust), supporting safer lifting wherever explosive atmospheres might occur. In its standard version, Eurobloc VT Ex delivers class-leading compactness with some of the smallest hook approach dimensions around, making better use of building height and work areas without sacrificing productivity. Fixed, normal, double girder, swivel trolley and machinery versions are all offered across the Eurobloc VT Ex range, suiting a wide array of installations.
Vertical Lift Innovation, ATEX-ready.
Grown out of Verlinde's expertise and backed by 13 dedicated patents, Eurobloc VT Ex is built to raise the performance bar, including in hazardous environments. It particularly stands out for its near-vertical lifting capability (minimizing lateral hook block displacement) and standard adjustable travel speed, which together enable smoother, more precise load handling. These traits sharpen positioning accuracy, improve operator comfort and provide greater control over movement, while supporting safer operations in potentially explosive atmospheres.
Load capacity
800kgto80000kg
Standard lifting capacities
4mto98.5m
Food industry
Paper industry
Pharmaceuticals
Chemicals
Waste recovery
Mechanical industry
Electronics industry
Maximum equipment safety is ensured because all required parts are properly Ex-proof rated and tested.
Certified Ex-proof under ATEX or IECEx.
Hoists are marked in line with ATEX:
Zone 1 IIB T4
Zone 1 IIC T4
Zone 2 IIB T3
Zone 2 IIC T3
Zone 21 IIIC T135°C
Zone 22 IIIC T135°C
Among the smallest on the market, its hook approach dimensions set it apart.
Near-vertical lifting keeps lateral movement of the hook block to a minimum during lifting.
The hoisting brake is set for the hoist's entire working life under normal use, and comes with dust protection.
Overheating is prevented through temperature monitoring, even if the equipment is used beyond rated values.
A hoisting brake built to last a lifetime
Loads can be positioned precisely thanks to variable travelling speed.
The hoist's solicitation status is tracked through monitoring.
Compliant with the Machinery Directive, the overload limiter pairs with low-voltage control and a safety-latch-equipped swivel hook/hook block.
Optional drum brake.
It lifts at 2 to 16 m/min
Pick from several versions here: fixed, normal headroom, double girder, swivel trolley, or machinery style.
Trolley: motorized
It lifts at 2 to 16 m/min
Pick from several versions here: fixed, normal headroom, double girder, swivel trolley, or machinery style.
Trolley: motorized
It lifts at 4 to 16 m/min
Available versions: hook suspended, normal headroom,
Trolley: motorized
From 0,7 m/min up to 16 m/min, that's the lifting speed range
Available versions: hook suspended, normal headroom
Trolley: motorized, push
Built for hazardous environments, Eurobloc VT Ex zones 1, 2, 21 & 22 particularly stands out for its compact size, near-vertical lifting capability (minimizing lateral hook block displacement) and standard adjustable travel speed, which together enable smoother, more precise load handling.
For zone 22, a compact and robust Ex-proof electric chain hoist
For zone 1, 2 & 21, a compact and robust Ex-proof electric chain hoist
It lifts at 2 to 16 m/min
Pick from several versions here: fixed, normal headroom, double girder, swivel trolley, or machinery style.
Trolley: motorized
It lifts at 4 to 16 m/min
Available versions: hook suspended, normal headroom,
Trolley: motorized
From 0,7 m/min up to 16 m/min, that's the lifting speed range
Available versions: hook suspended, normal headroom
Trolley: motorized, push
