Safe material handling in classified areas, thanks to Ex compliance.

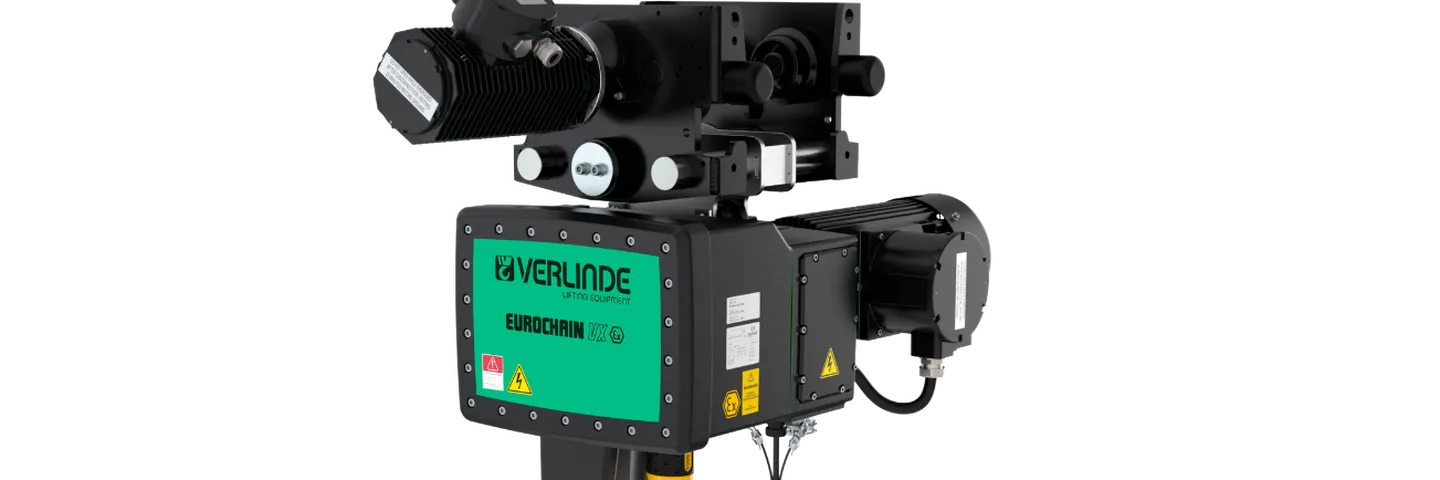

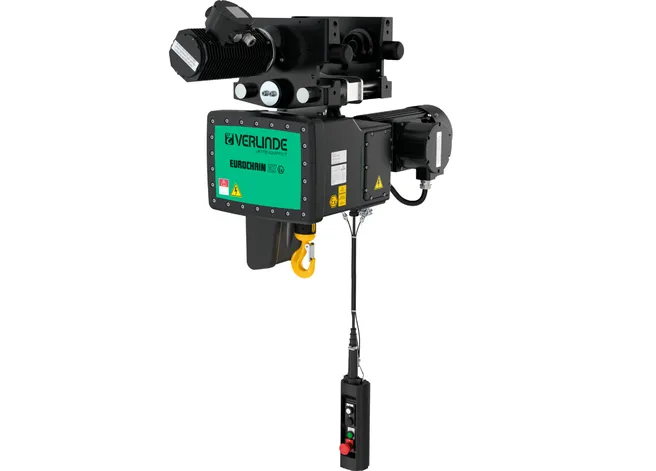

Built for hazardous environments, Eurochain VX Ex zone 1, 2 & 21 is an Ex-proof hoist meeting ATEX requirements for gas and dust zone areas, supporting safer lifting wherever explosive atmospheres might occur. Three key configurations are available for this compact hoist: a fixed hoist suspended, a hoist on a push-travel monorail trolley, and a hoist on an electrically driven monorail trolley. Installation is simplified and lifting height optimized by its wide-opening suspension lug, while reduced dimensions allow for improved hook approach. Staying compatible with existing trolleys, this range ensures easy integration into both new and existing installations.
ATEX/IECEx-compliant chain hoist for hazardous areas.
Hazardous-area lifting in gas/vapour (zones 1 and 2) and combustible dust (zone 21) environments is what Eurochain VX Ex zones 1, 2 & 21 is engineered for, combining the latest safety regulations with notified body certification for the complete equipment. Built-in inverter travelling comes as standard, delivering smoother, more controlled movements and improved operational efficiency, and every critical component is Ex-rated and thoroughly tested to maximize safety where it matters most. Overheating is prevented through advanced temperature monitoring, even if the equipment is used beyond rated values, supporting safe, reliable performance in demanding conditions. A separated brake torque path from the motor torque path, plus a hoisting brake designed for lifetime durability, further strengthen safety, helping maintain controlled load handling in both T-class-limited gas atmospheres and dust-sensitive zone 21 operations.
Load capacity
320kgto2500kg
Standard lifting capacities
3mto40m
Food industry
Paper industry
Pharmaceuticals
Chemicals
Waste recovery
Mechanical industry
Electronics industry
Hoists are marked in line with ATEX:
Equipment category 2G (Zone 1) :
Ex II 2G Ex db eb h IIC T4 Gb
Equipment category 3G (Zone 2):
Ex II 3G Ex db ec h IIC T3 Gc
Equipment category 2D (Zone 21):
Ex II 2D Ex h tb IIIC T120°C Db
Built and certified to the latest safety regulations.
The complete equipment carries Notified Body certification.
Safety is maximized because all required parts are Ex-proof rated and tested.
A wide-opening suspension lug makes installation easier and optimizes lifting height, while remaining compatible with existing trolleys.
Improved resistance to wear in dusty, harsh operating conditions comes from the DAT hoist chain.
No adjustment and barely any maintenance are needed, thanks to the optimized hoist brake.
Main components are easy to reach for maintenance.
Smooth, controlled movement comes from inverter travelling as standard.
A hoisting brake built for lifetime performance.
Smaller dimensions allow for improved hook approach.
In-house development tailored specifically for hoists gives the motor increased robustness.
An optimized gearbox boosts hoist efficiency.
Both the upper and lower lifting hook positions are covered by a robust safety electrical limit switch.
Preventive overheating sensors on the hoisting motor bring improved safety.
Should an overload occur, greater safety for both user and building structure comes from a more precisely adjusted torque limiter.
From 0,7 m/min up to 16 m/min, that's the lifting speed range
Available versions: hook suspended, normal headroom
Trolley: motorized, push
From 0,7 m/min up to 16 m/min, that's the lifting speed range
Available versions: hook suspended, normal headroom
Trolley: motorized, push
It lifts at 4 to 16 m/min
Available versions: hook suspended, normal headroom,
Trolley: motorized
It lifts at 2 to 16 m/min
Pick from several versions here: fixed, normal headroom, double girder, swivel trolley, or machinery style.
Trolley: motorized

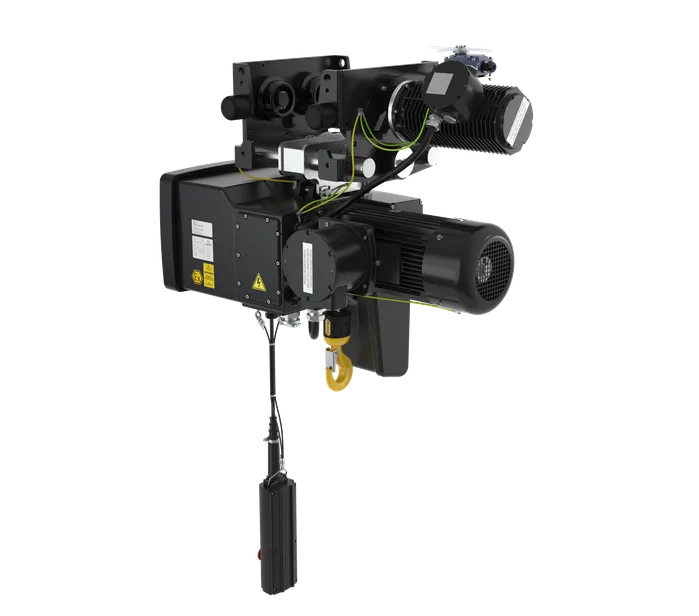

For zone 1, 2 & 21, a compact and robust Ex-proof electric chain hoist

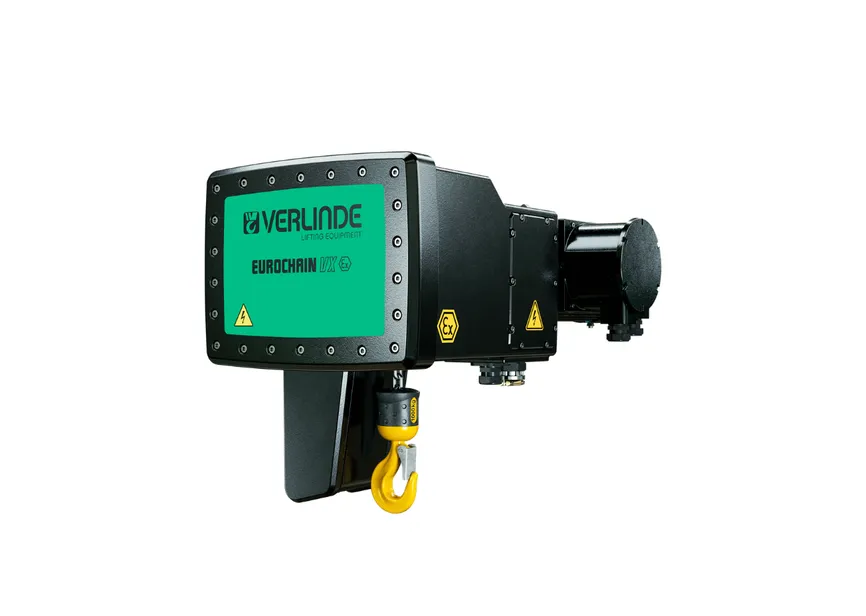

For zone 22, a compact and robust Ex-proof electric chain hoist
Built for hazardous environments, Eurobloc VT Ex zones 1, 2, 21 & 22 particularly stands out for its compact size, near-vertical lifting capability (minimizing lateral hook block displacement) and standard adjustable travel speed, which together enable smoother, more precise load handling.
From 0,7 m/min up to 16 m/min, that's the lifting speed range
Available versions: hook suspended, normal headroom
Trolley: motorized, push
It lifts at 4 to 16 m/min
Available versions: hook suspended, normal headroom,
Trolley: motorized
It lifts at 2 to 16 m/min
Pick from several versions here: fixed, normal headroom, double girder, swivel trolley, or machinery style.
Trolley: motorized
