Name: Eurochain VX Ex zone 22
Brand: Verlinde

Exproof electric chain hoist covering zone 22

Overview

Compact by design. ATEX-ready.

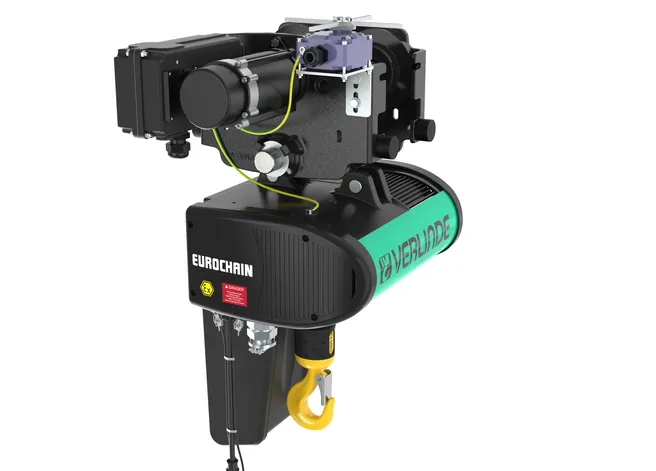

With its compact build, Eurochain VX Ex zone 22 comes in three main configurations: a fixed hoist hung from a suspension lug, a hoist fitted to a push-travel monorail trolley, and a hoist mounted on a motor-driven monorail trolley. Built for straightforward integration across a broad range of demanding production settings, the Eurochain VX EX zone 22 range delivers a complete answer to many exproof lifting needs. A wide-opening suspension lug makes installation easier and improves lifting height, and its smaller dimensions give better hook approach. Because it works with existing trolleys, Eurochain VX Ex zone 22 fits smoothly into both new and existing installations.

Innovation

ATEX/IECEx-compliant chain hoist for hazardous areas.

Innovation meets hazardous-area lifting in Eurochain VX Ex zone 22, which combines the latest safety regulations with notified body certification for the complete equipment. Built-in inverter travelling comes as standard, delivering smoother, more controlled movements and improved operational efficiency, while every critical component is Ex-proof rated and thoroughly tested to maximize safety where it matters most. Overheating is actively prevented through advanced temperature monitoring, even if the equipment is used beyond rated values, helping ensure safe, reliable performance in demanding conditions. A separated brake torque path from the motor torque path, plus a hoisting brake designed for lifetime durability, further strengthen safety.

Technical details

Download brochure

Load capacity

160kgto1000kg

Standard lifting capacities

3mto60m

The following industries rely on Eurochain VX Ex zone 22 hoists:

Food industry
Paper industry
Pharmaceuticals
Chemicals
Waste recovery
Mechanical industry
Electronics industry

Key benefits

Compare with similar products

Eurochain VX Ex zone 22

For zone 22, a compact and robust Ex-proof electric chain hoist

Load capacity: From 160 to 1000kg
Standard lifting capacities: From 3 to 60m
Lifting type: Double speed
Key features and performance: It lifts at 4 to 16 m/min
Available versions: hook suspended, normal headroom,
Trolley: motorized
Key benefits: Safety is maximized because all required parts are Ex-proof rated and tested. The DAT hoist chain offers improved wear resistance in dusty environments and under harsh operating conditions, and inverter travelling comes as standard for smooth, controlled movement. Preventive overheating sensors on the hoisting motor bring improved safety.

CHOOSE A MODEL

Eurochain VX Ex zone 22

For zone 22, a compact and robust Ex-proof electric chain hoist

Load capacity: From 160 to 1000kg
Standard lifting capacities: From 3 to 60m
Lifting type: Double speed
Key features and performance: It lifts at 4 to 16 m/min
Available versions: hook suspended, normal headroom,
Trolley: motorized
Key benefits: Safety is maximized because all required parts are Ex-proof rated and tested. The DAT hoist chain offers improved wear resistance in dusty environments and under harsh operating conditions, and inverter travelling comes as standard for smooth, controlled movement. Preventive overheating sensors on the hoisting motor bring improved safety.

Eurochain VX Ex zone 22

For zone 22, a compact and robust Ex-proof electric chain hoist

Load capacity: From 160 to 1000kg

Standard lifting capacities: From 3 to 60m

Lifting type: Double speed

Key features and performance

It lifts at 4 to 16 m/min
Available versions: hook suspended, normal headroom,
Trolley: motorized

Key benefits: Safety is maximized because all required parts are Ex-proof rated and tested. The DAT hoist chain offers improved wear resistance in dusty environments and under harsh operating conditions, and inverter travelling comes as standard for smooth, controlled movement. Preventive overheating sensors on the hoisting motor bring improved safety.
