Efficient articulated jib cranes.
Templiers manual articulated jib cranes are built for flexible, ergonomic lifting in demanding workspaces where maneuvering around obstacles and machinery is difficult and/or space is tight. Offering three distinct configurations, the range delivers adaptable solutions for wall, column or roof-mounted installation.
Maximum reach. Minimal dead space.
Offering capacities from 50 to 1000 kg and spans from 2 to 5 m depending on the model, the Verlinde Templiers range delivers extensive working coverage with very little dead space. Its articulated arm simplifies handling loads around obstacles and machinery, giving workstations a high degree of flexibility and helping operators position loads smoothly and accurately. By making the most of available space, it brings lifting capability right to where the work happens.
Load capacity
50kgto1000kg
Aeronautics
Shipyards
Rail industry
Port industry
Metallurgy
Paper industry
Power plants
Waste recovery

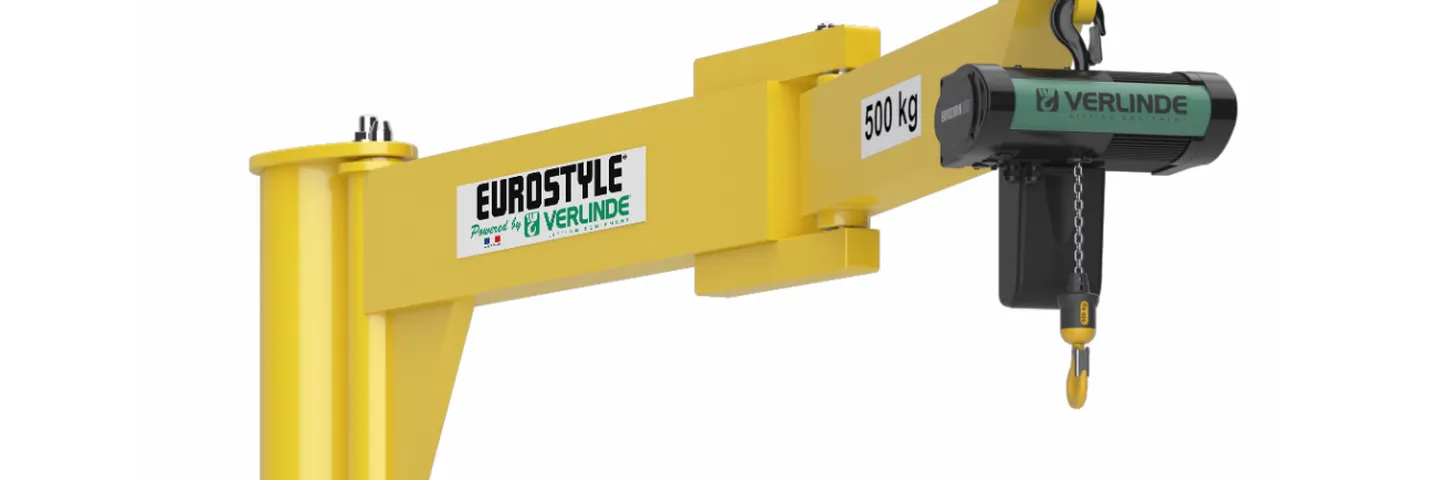

The articulated arm lets operators reach loads around obstacles, machinery and workstations with ease.
Our jib cranes arrive ready to assemble on site.
Protection: 3 layers of paint.

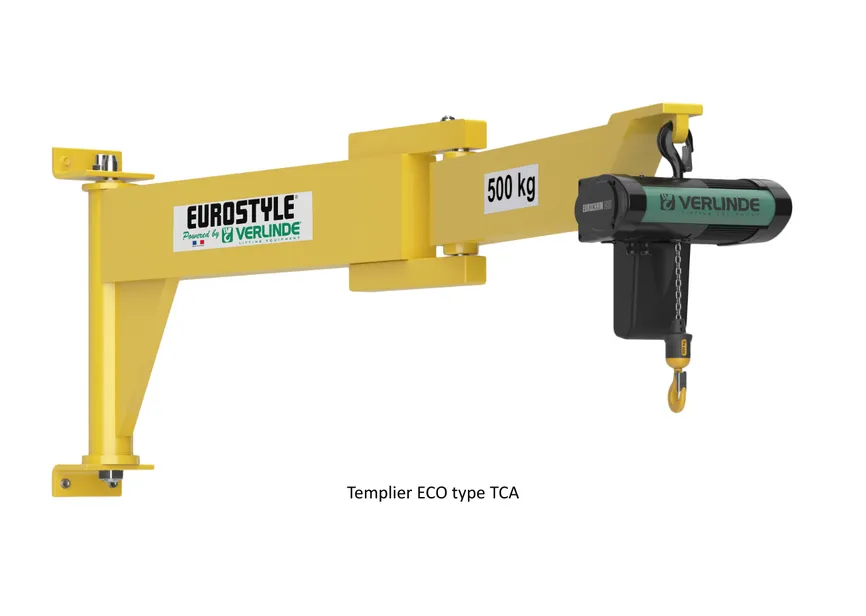

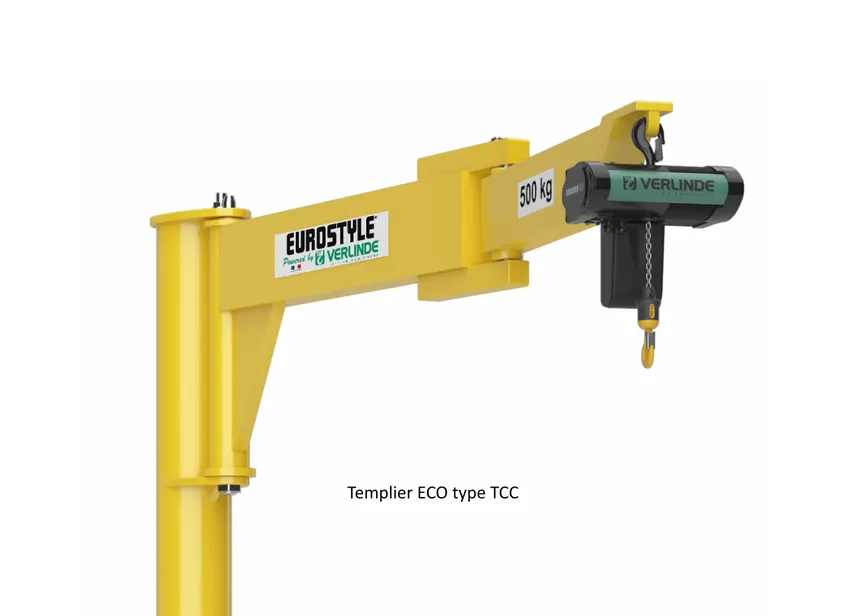

Offered in wall-mounted, column-mounted and roof-mounted versions to meet extensive lifting installation needs.
From eco to premium versions, jib crane capacities range from light workstation tasks to heavier industrial demands, depending on the model.
Lifting speed: 16 m/min
Versions: wall-mounted, column-mounted or roof-mounted
Rotation is offered in manual mode only
Lifting speed: 16 m/min
Versions: wall-mounted, column-mounted or roof-mounted
Rotation is offered in manual mode only
This model is offered as a wall-mounted, column-mounted, 270° slewing, 360° slewing, or articulated unit
Greater jib clearance and extended spans available on request
The Verlinde VGI gantry delivers a versatile lifting solution for workshops and industrial sites. Its freestanding structure, load-under-travel capability and capacities of up to 5 tonnes boost productivity while adapting to shifting operational demands.
Templiers manual articulated jib cranes cover loads of 50 to 1000 kg across spans of 2 to 5m, offering near-full circular coverage with virtually no dead space. The articulated arm makes it possible to work around obstacles. It can be installed on a wall, column or roof.
Eurostyle spans a broad range of manual and motorized jib cranes suited to large installations. Robust, attractively designed and high-performing, Eurostyle jib cranes can be fitted with Verlinde's complete range of hoists.
VGI is a manually driven range of standard I-profile gantry cranes for loads from 500 to 5000 kg. Built to accept any hoist, it can carry either a hand chain hoist or an electric chain hoist. VGI can be relocated while carrying a load, and its dimensions can be tailored on request.
