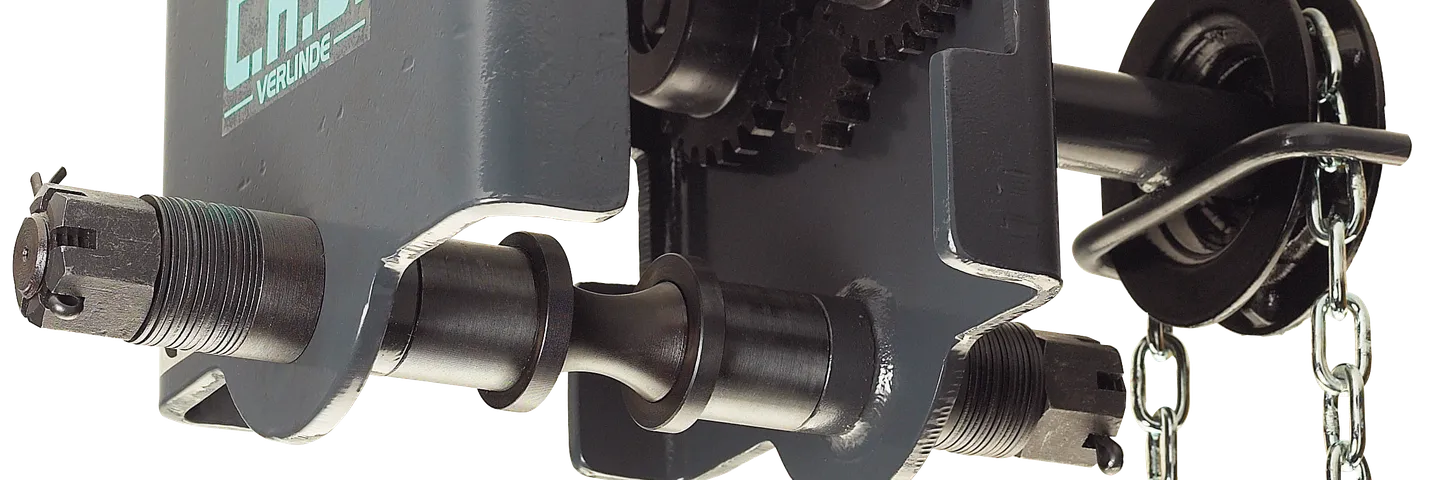

Trolley with manual push travel or chain travel.

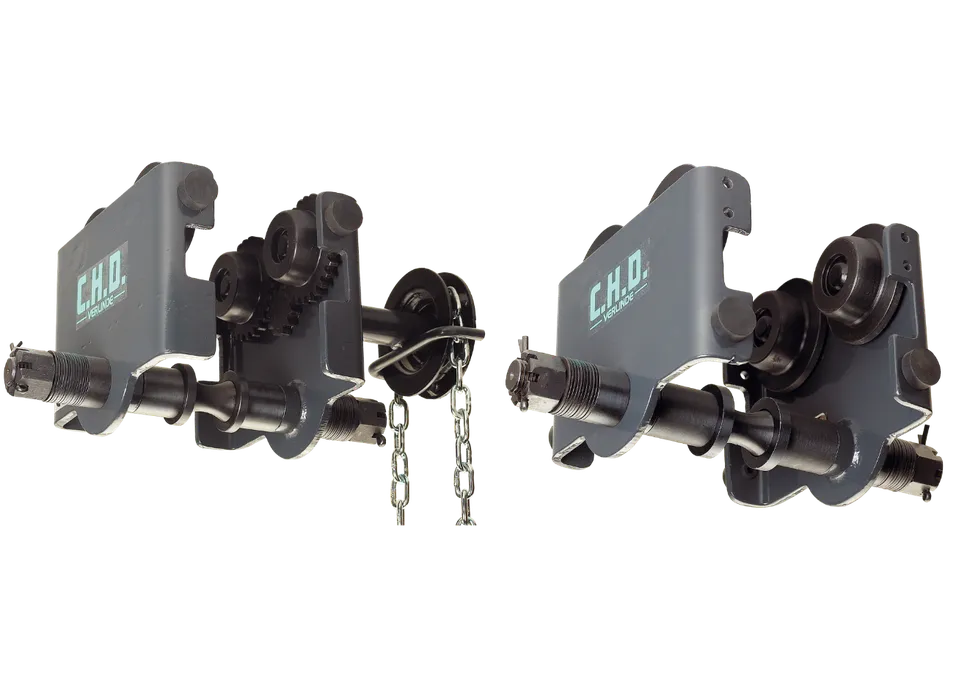

CHD-CHDD trolleys let you suspend any hook-equipped manual lifting device. The side plate spacing adjusts to fit, and you steer either by pushing or with the handwheel and chain. These manual trolleys give reliable, precise, cost-effective horizontal travel across a wide range of lifting tasks. From maintenance to material handling, the CHD-CHDD range keeps load positioning safe, smooth and efficient in demanding industrial settings.
Steady performance built on durability and safety
Every CHD and CHDD trolley is built to deliver steady performance, long service life and operator confidence. A sturdy steel frame, optimized wheel geometry and an adjustable design ensure smooth movement, precise load positioning and straightforward installation across a variety of beam profiles. Built for durability and simplicity, they adjust quickly to different beam widths and integrate easily with manual or electric hoists.
Load capacity
250kgto20000kg
Aeronautics
Automotive
Food industry
Shipyards
Rail industry
Port industry
Mining
Quarries
Suspended loads move along the beam easily and with little effort, thanks to smooth, precise load travel.
A versatile choice: CHD and CHDD manual trolleys work with both manual and electric hoists, suiting a wide range of lifting applications.
High-quality steel components deliver robust, durable construction and long service life, even in demanding industrial environments.
Safe load handling during operation is ensured by reliable wheel guidance and a secure design.
Comply with EN 13157.
Quick commissioning is enabled by an adjustable fit across a wide range of beam widths.
Maintenance needs and downtime both drop thanks to a simple mechanical design.

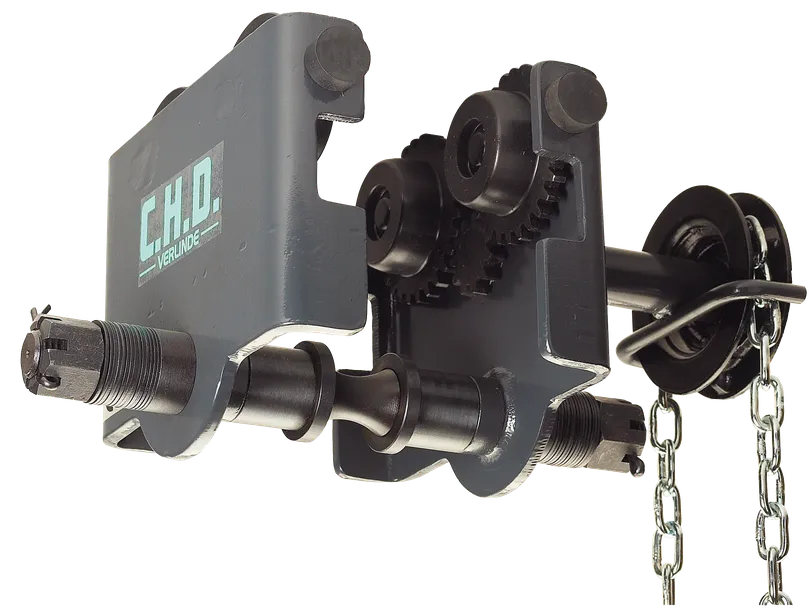

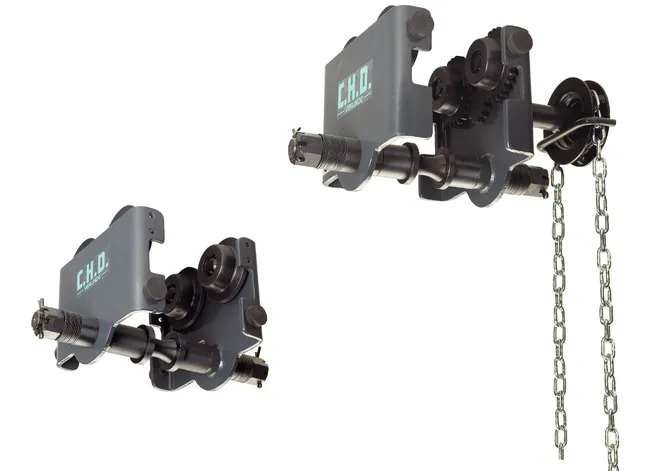

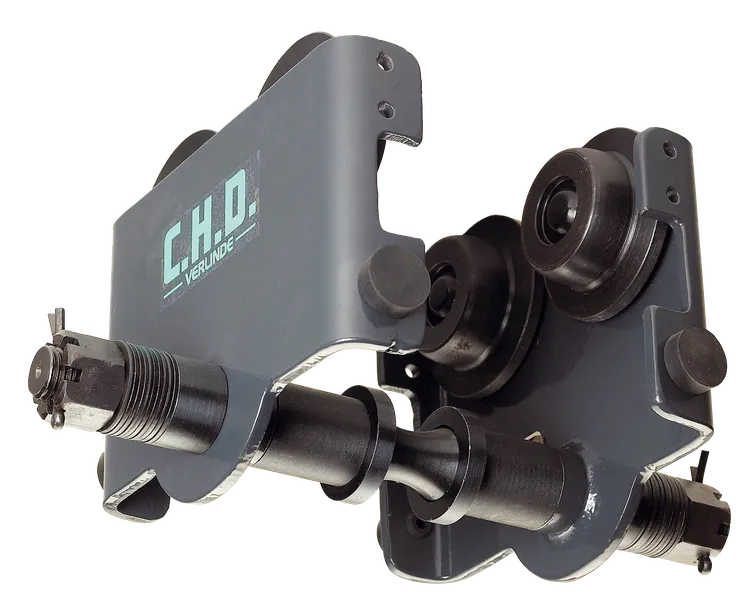

Trolley types: push travel and geared chain travel
Trolley types: push travel and geared chain travel
Motorized trolley options: available with push travel (CHVXP) or with geared chain travel (CHVXG)
Trolleys with manual travel, built for loads from 250 to 20000 kg

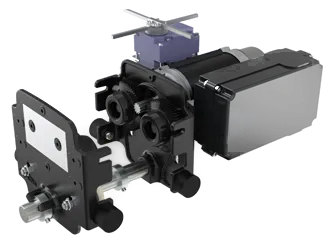

Verlinde CHVX electric trolley is built to run on every profile type — IPN or IPE, HEA or HEB — whether straight or curved, and lets a hoist with a top hook, or one using Eurochain VX coupling systems, be hung directly.
